SPIDER TYPE BOGIE

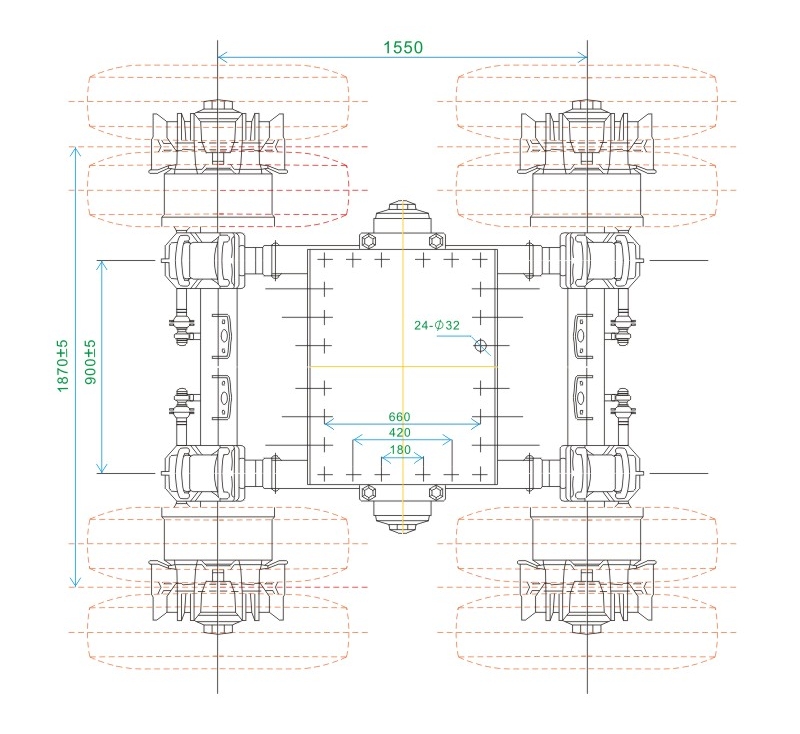

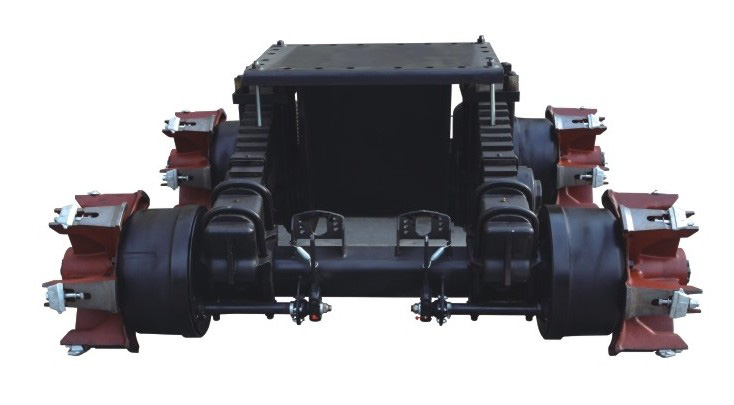

                                                                                                  Spider Type Bogie
Item No.Max Capacity（KG）Axle TypeSpring LeafDistance of Spring Seat (mm)Distance of Axle (mm)Size of Mounting Bracket       (mm)Height of Pedestal    (mm)Weight  (KG)
CPLFB32006320002*16T179001550800*9806602540
CPLFB28006280002*14T199001550800*9806602500
CPLFB24006240002*12T219001385800*9806602300
