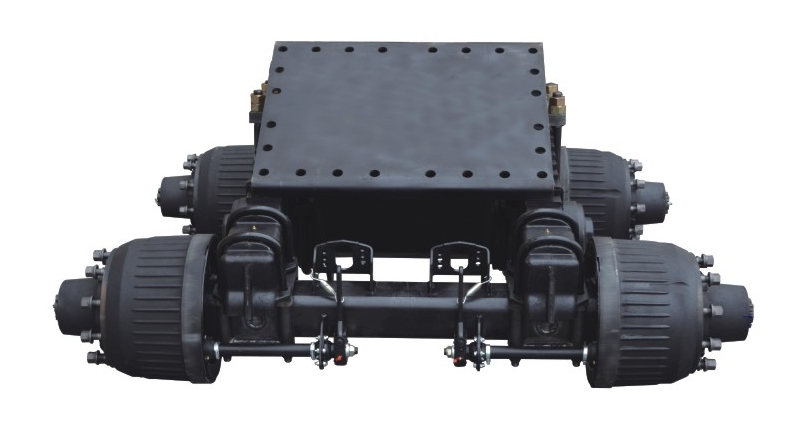

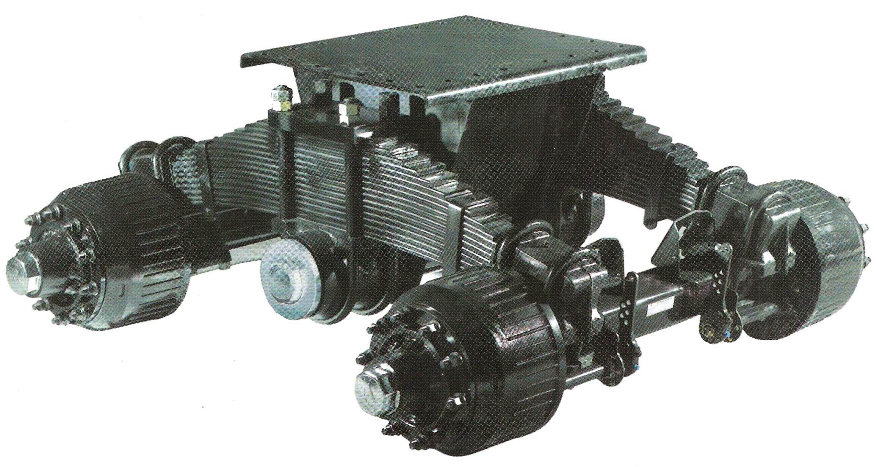

HUB TYPE BOGIE






                                                                                           Hub Type Bogie

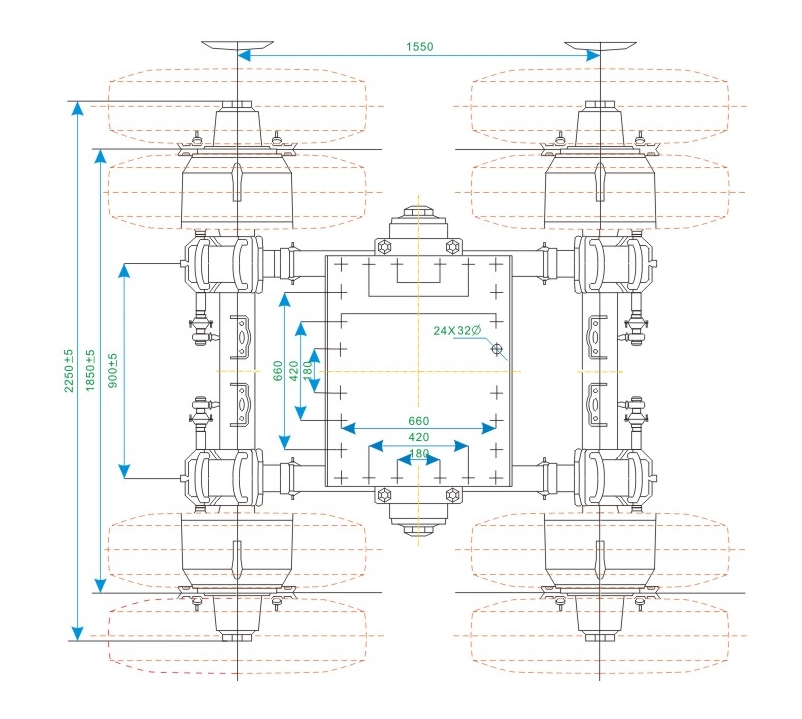

Item No.Max Capacity（KG）Axle TypeSpring LeafDistance of Spring Seat (mm)Distance of Axle (mm)Size of Mounting Bracket       (mm)Height of Pedestal    (mm)Weight  (KG)
CPGSB32006320002*16T179001550800*9806602400
CPGSB28006280002*14T199001550800*9806602360
CPGSB24006240002*12T219001385800*9806602160
