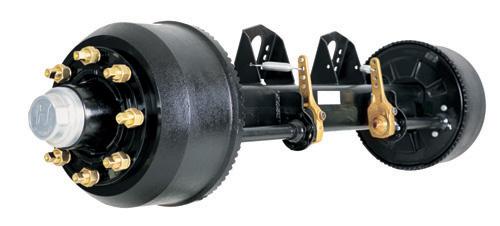

| Hub Type Axle | |||||||||||

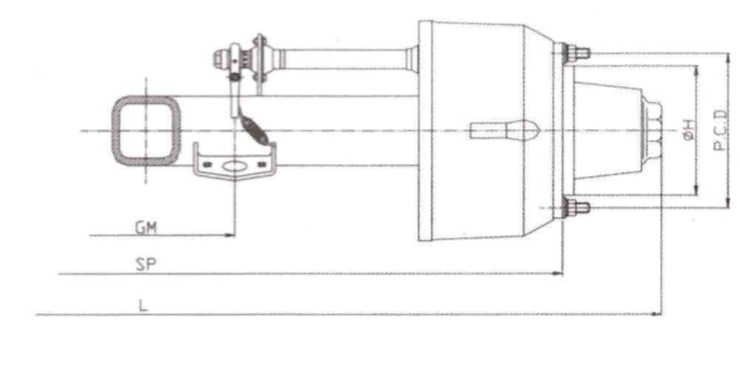

| Item No. | Max Capacity（KG） | Bearing | Total Length (mm) | Track (mm) | Centre Distance of Brake Chamber (mm) | Axle Tube (mm) | Standard of Arrester (mm) | Wheel Fixing | Criterion | Max Speed (Km/h) | Weight (Kg) |
| CPGS12006 | 12000 | 33213/33118 | 2240 | 1850 | 360 | 150*150*12 | Φ420*180 | 2-6-M20*335*290 | ISO | 105 | 380 |
| CPGS14006 | 14000 | 33215/32219 | 2245 | 1850 | 360 | 150*150*14 | Φ420*200 | 2-6-M20*335*290 | ISO | 105 | 420 |
| CPGS16006 | 16000 | 32314/32222 | 2250 | 1850 | 360 | 150*150*16 | Φ420*200 | 2-6-M20*335*290 | ISO | 105 | 450 |
| CPGS16007 | 16000 | 32314/32222 | 2360 | 1950 | 360 | 150*150*16 | Φ420*200 | 2-6-M20*335*290 | ISO | 105 | 460 |
| CPGS16008 | 16000 | 32314/32222 | 2430 | 2020 | 360 | 150*150*16 | Φ420*200 | 2-6-M20*335*290 | ISO | 105 | 465 |
| CPGS16009 | 16000 | 32314/32222 | 2550 | 2150 | 660 | 150*150*16 | Φ420*200 | 2-6-M20*335*290 | ISO | 105 | 480 |
| CPGS16010 | 16000 | 32314/32222 | 2850 | 2450 | 960 | 150*150*16 | Φ420*200 | 2-6-M20*335*290 | ISO | 105 | 510 |
